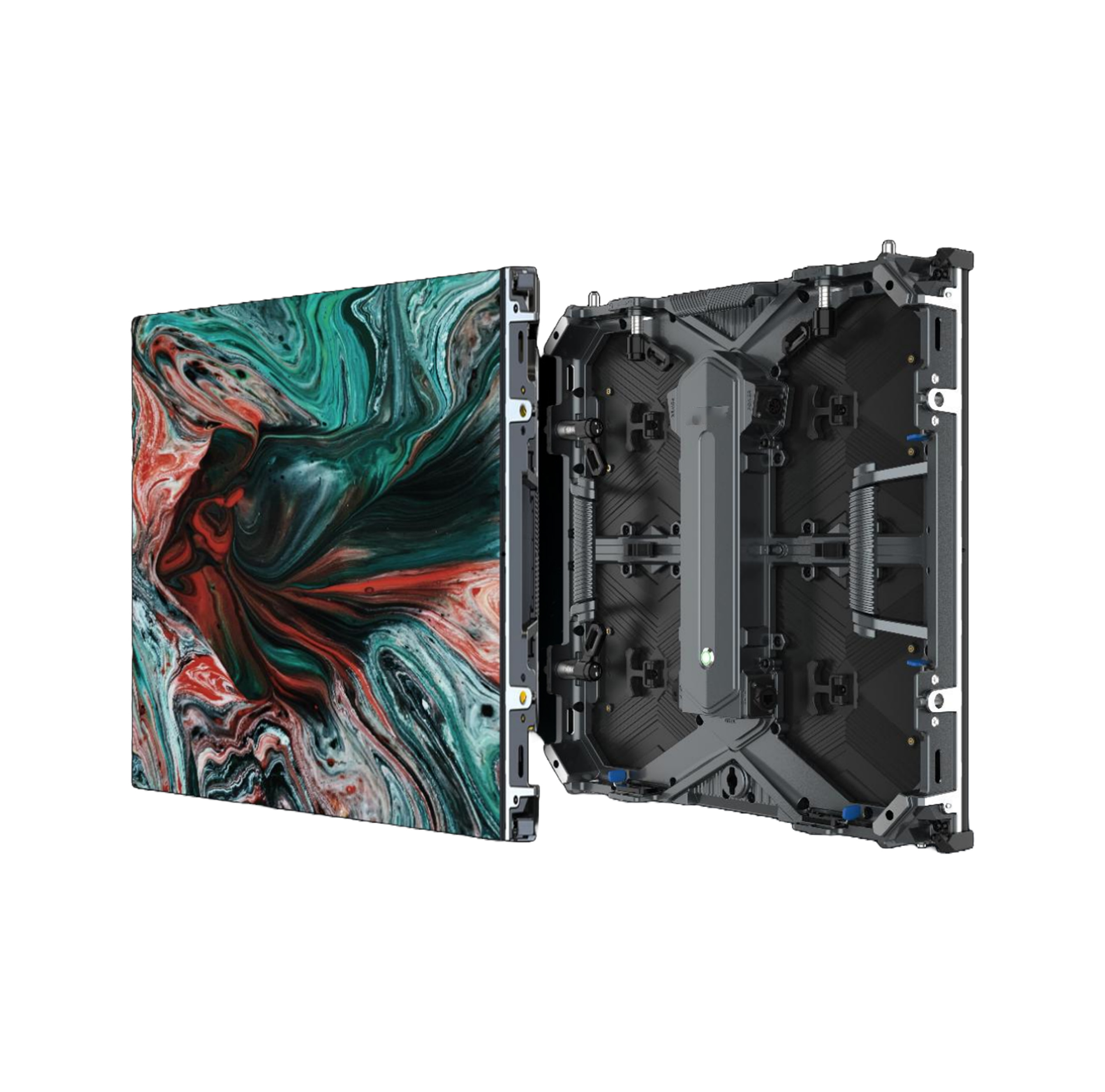

GTOPS P3.91 Video LED Wall Panel Display
Product Model: GLT-II P3.91
| DESCRIPTION | SPECIFICATION |
|---|---|
| Pixel Pitch | 3.91mm |
| LED Type | 3-in-1 SMD1921 |
| Brightness | 3500-4000nits |
| Pixels | 65,536pixels/m² |
| Cabinet Resolution | 128×128 pixels |
| Module Size | W250 × H250mm |
| Cabinet Size | W500 × H500 × D70mm |
| Cabinet Weight | 6.36kg / panel |
| Maintenance | Full Rear |
| Ingress Protection | IP65/IP54 |
| Curve | -7.5° ~ +10° |
| Installation Environment | Outdoor |
| Cabinet Material | Die-casting Aluminum |
| Calibration | Support Brightness and Chroma |
| Color Temperature | 6500 - 9300K adjustable |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Contrast Ratio | 3000 is to 1 |
| Input Power (Max) | 720W/m² |
| Input Power (Typical) | 250W/m² |
| Input Voltage | AC100-240V |
| Processing Depth | 14-16bits |
| Scan Method | 1/16 |
| Refresh Rate | 3840Hz / 7680Hz |
| Video Frame Rate | 50 / 60Hz |
| LED Lifespan | 100,000 hours |
| Operation Temperature/Humidity | -10°C~45°C / 10~80%RH |
| Storage Temperature/Humidity | -10°C~45°C / 10~80%RH |
| Standard Mounting Configuration | Stacking / Hanging |
