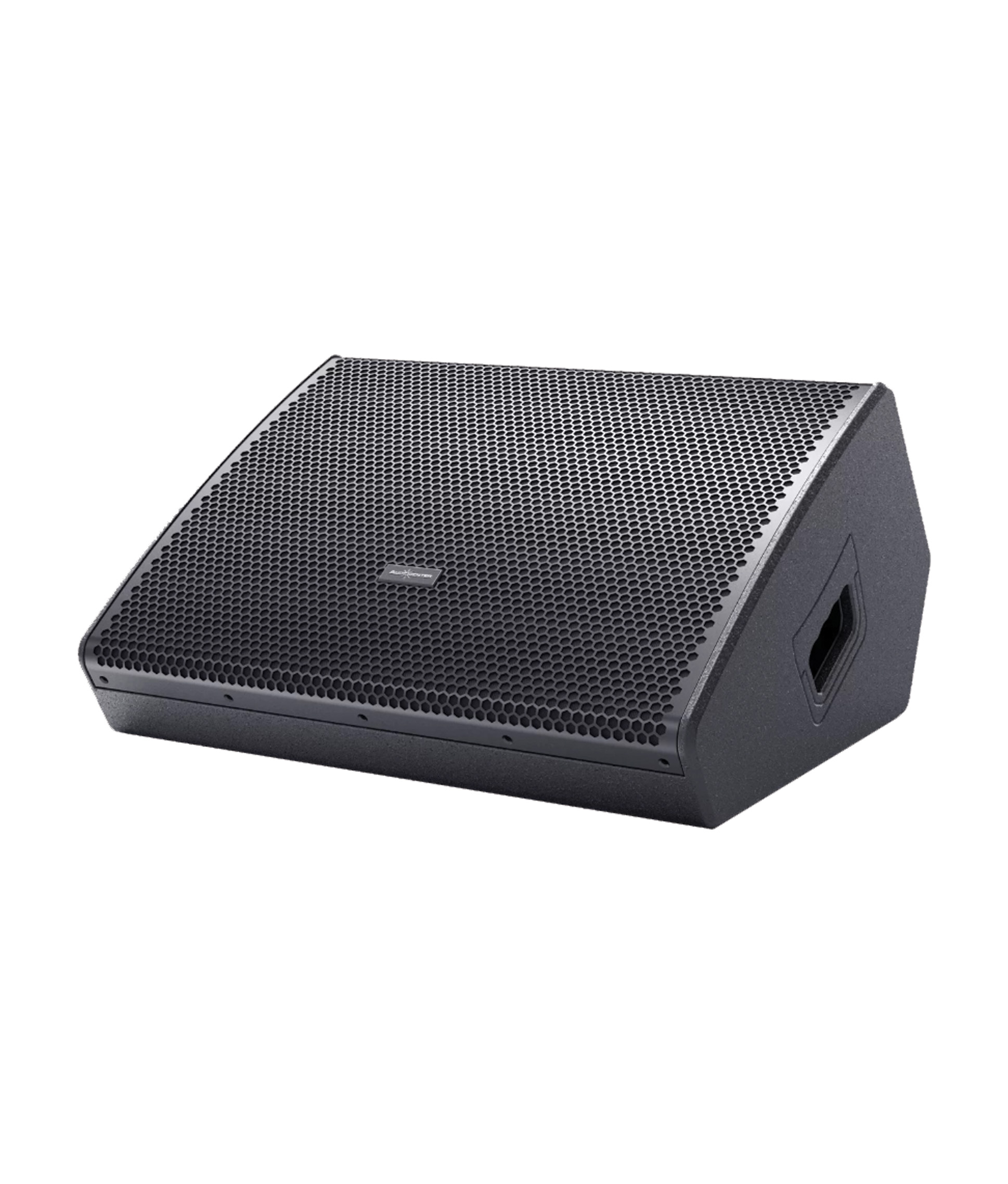

Audiocenter Dual 10” Wedge Monitor Speaker

DESCRIPTION	SPECIFICATION
Type	Active DSP-controlled Wedge Monitor loudspeaker
Frequency Response(-10dB)	55Hz-20kHz
Horizontal Coverage	60° x 90°
Maximum Calculated SPL/1M (Continuous/Peak)	122dB/128dB
HF Driver	Customized driver, 1.75” voice coil and 1.0” exit
LF Driver	Customized 2×10” driver, 2.0” voice coil
DSP Processor	48kHz signal sampling frequency, FIR filtering
Presets	FLAT, VOCAL, DRUM
Amplifier Circuitry	Class D
Power (RMS standards)	1100W
Peak Power	2200W
Frequency Response(1W 8Ω 2ch)	20Hz-20kHz(±0.5dB)
Intermodulation Distortion (20Hz-20kHz, half power)	＜0.05%
Total Harmonic Distortion (20Hz-20kHz, Rated power 8Ω)	＜0.05%
Cooling System	Cooling with fans, air convection
Protection	DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input	Female XLR
Signal Output	Male XLR
Power Input	Power connector
Power Output	Power connector
Working Voltage	100V~130V or 220V~240V(±10%,50/60Hz)
Cabinet Material	CNC machined plywood
Cabinet Color	Black is the default color.
Grille	Iron mesh
Handles	2 side
Cabinet monitoring Angle	30°
Optional Accessories	Cover / Flightcase
Speaker Dimension(W×H×D)	593×320×515mm
Net Weight	19.0 kg
