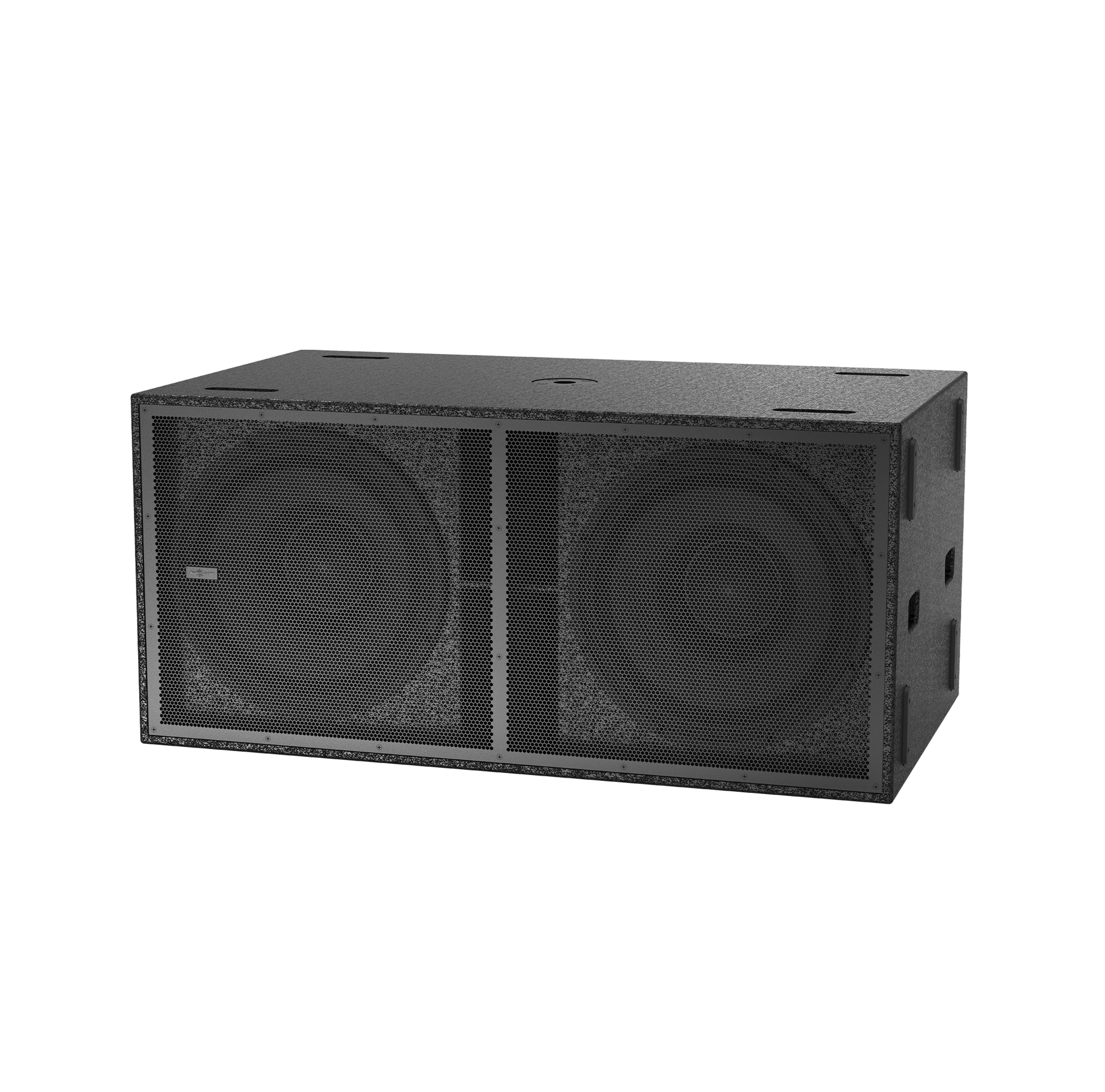

Audiocenter Dual 18” Active Subwoofer

DESCRIPTION	SPECIFICATION
Type	Active DSP-controlled Compact Subwoofer
Frequency Response(-10dB)	26Hz-135Hz
Maximum Calculated SPL/1M (Continuous/Peak)	134dB/140dB
LF Driver	Customized 2×18” driver, 4.0” voice coil
DSP Processor	48kHz signal sampling frequency
DSP Presets	80Hz, 100Hz, 120Hz
Amplifier Circuitry	Class D
Power (RMS Standards)	2000W
Power (Peak)	4000W
Frequency Response(1W 8Ω 2ch)	20Hz-20kHz(±0.5dB)
Intermodulation Distortion	<0.05%
Total Harmonic Distortion	<0.05%
Cooling	Cooling with fans, air convection
Protection	DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input	Female XLR
Signal Output	Male XLR
Working Voltage	100-130V or 220-240V (±10%,50/60Hz)
Power Consumption	237W
Cabinet Material	CNC machined plywood
Cabinet Color	Black
Grille	Iron mesh
Handles	4 side
Pole Mount	M20 base Φ35mm
Speaker Dimensions (W×H×D)	1206×565×694mm
Carton Dimension (W×H×D)	651×1331×780mm
Net Weight	68.0kg
