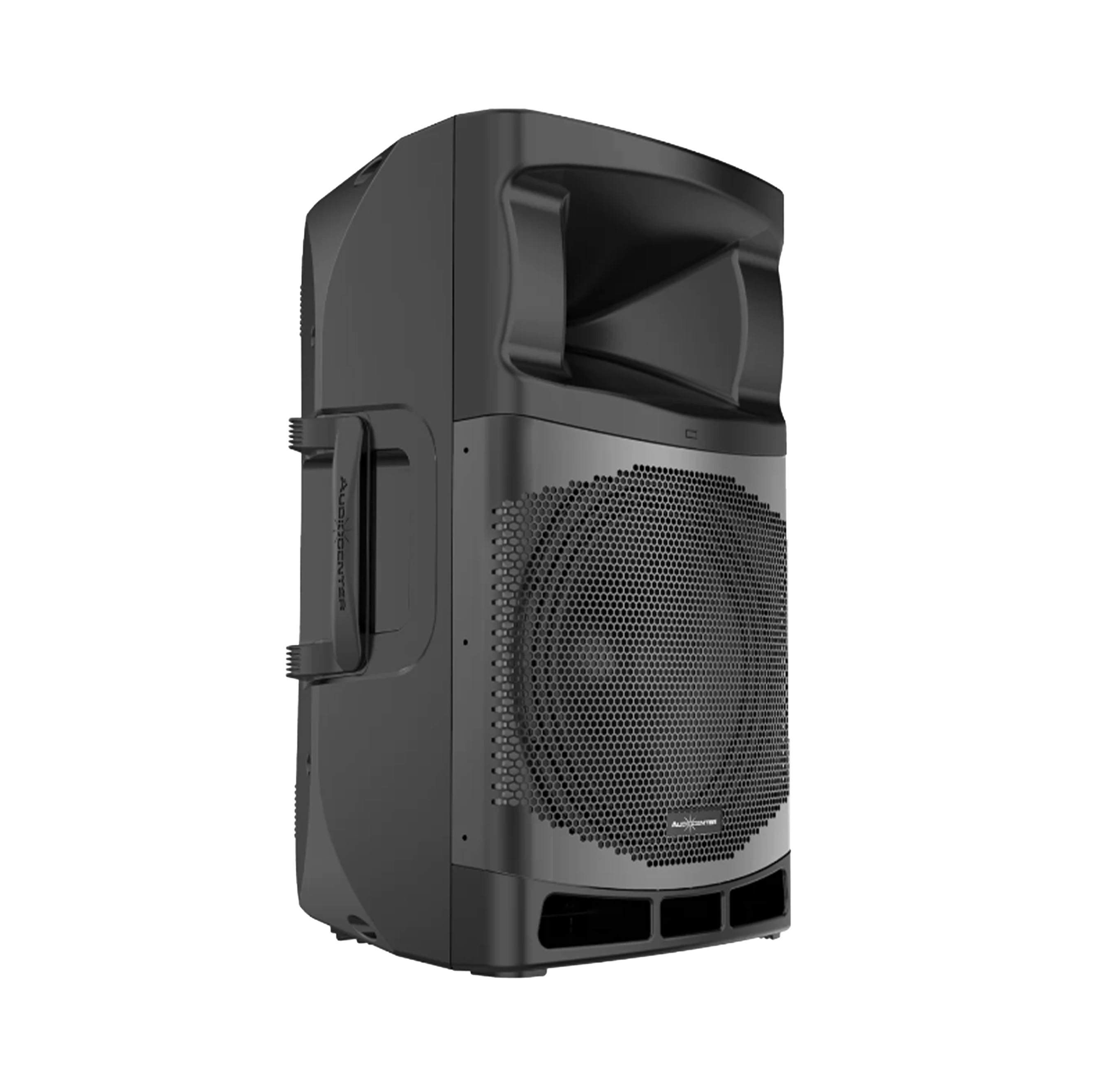

Audiocenter 15” Active MA Speakers

DESCRIPTION	SPECIFICATION
Type	Portable Active DSP-controlled Loudspeaker
Frequency Response(-10dB)	45Hz-20kHz
Maximum Calculated SPL/1M (Continuous/Peak)	128dB / 134dB
LF Driver	Customized 15" driver, 3" voice coil
HF Driver	Customized Driver, 1.0" exit, 1.4" voice coil
Horizontal Coverage Angle (Symmetrical)	80°
Vertical Coverage Angel (Symmetrical)	50°
Amplifier Circuitry	Class D
Power (RMS Standards)	800W
Power (Peak)	1600W
Frequency Response(1W 8Ω 2ch)
20Hz-20kHz(±0.5dB)
Intermodulation Distortion	< 0.05%
Total Harmonic Distortion	< 0.05%
Protection
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Cooling System	Air convection
DSP Processor	48KHz signal sampling frequency
DSP Crossover	Controlled by DSP
Signal Input	2 × female XLR (mono jack 6.35), 1 × wireless bluetooth, 1× mini jack 3.5
Signal Output	1 × male XLR
Power Consumption	64W
Power Input / Output	IEC Power Connector
AC Power Operating Range	100V-240V (±10%, 50/60Hz）
Power Input	IEC Power Connector
Monitor Function	Symmetrical 45° monitor angle
Cabinet Material	New polypropylene composite material
Cabinet Color	Black
Grille	Iron Mesh
Handles	2 side, 1 top
Pole Mount	Base hole Φ35mm
Speaker Dimension	417×702×426mm
Net Weight	17.5kg
