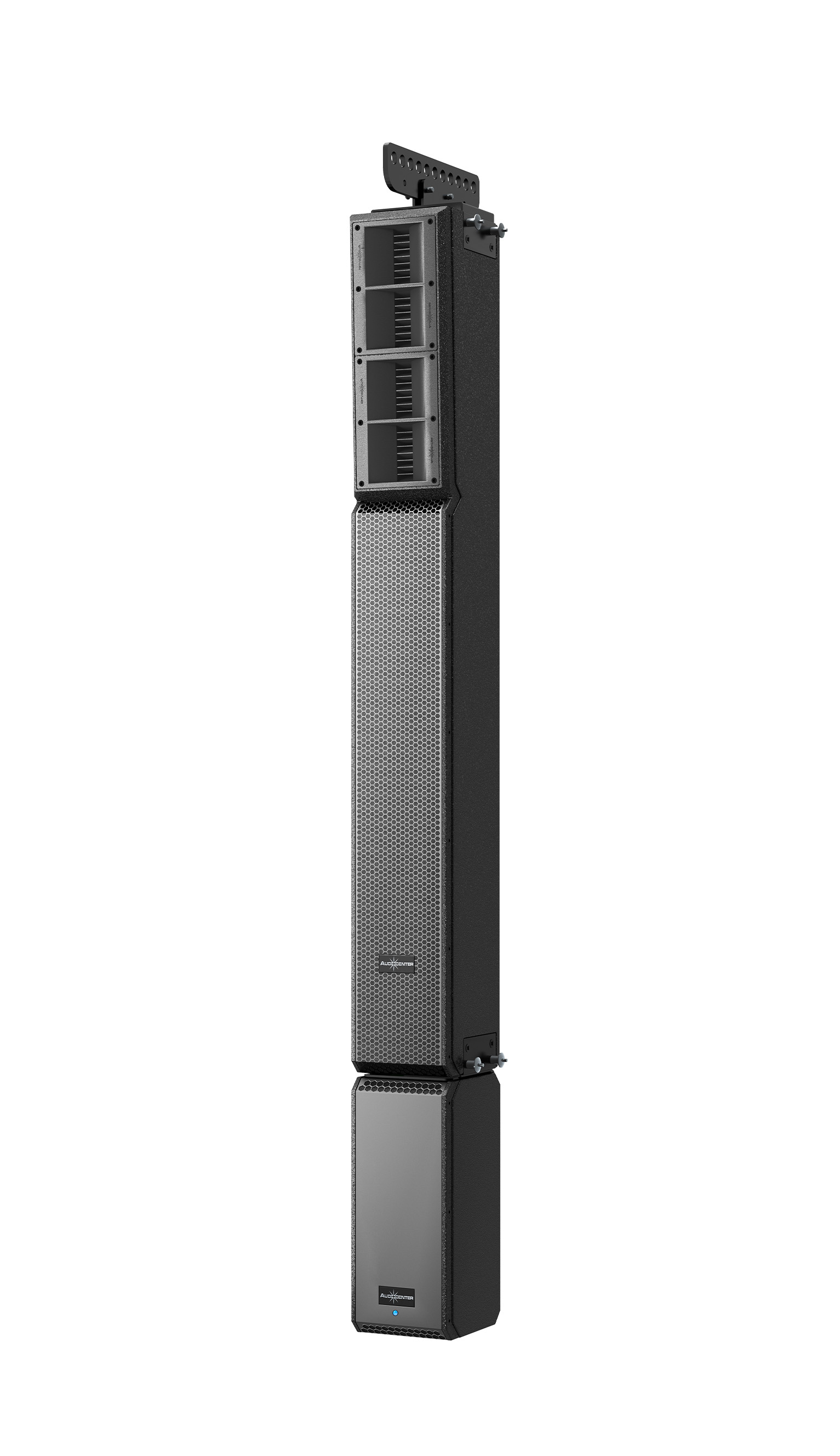

Audiocenter Active Column Speaker System

DESCRIPTION	SPECIFICATION
Type	Active DSP-Controlled Column Speaker System
Frequency Response (-6dB anechoic chamber)	75Hz-20KHz
Maximum Calculated SPL/1M	134dB
LF Driver	Customized Audiocenter ferrite driver, 6 pcs. 5″ drivers
HF Driver	Customized BEYMA ferrite driver, 4 pcs 1″ drivers
Horizontal Coverage Angle (Symmetrical)	110°
Vertical Coverage Angle (Symmetrical)	10°
DSP Processor	96KHz Signal Sampling Frequency, 24bit precision
DSP Crossover	Controlled by DSP
Amplifier Power	1400W
Frequency Response	20Hz-20KHz(±0.5dB)
Intermodulation Distortion	<0.5%
Total Harmonic Distortion	<0.5%
Power Protection	DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Cooling System	Cooling with fans, air convection
Signal Input	2×Combo (NEUTRIK® female XLR & Mono Jack 6.35) 1×RCA
Signal Output	1×NEUTRIK® Male XLR
Amplifier Output Link L65	1×NEUTRIK® NL4MP
Column Input Link L65-A	1×NEUTRIK® NL4MP
Power Input / Output	Power Connector
Working Voltage	100-130V/60Hz or 220-240V/50Hz
Cabinet Material	CNC made of excellent wood
Pole Mount	Φ35mm (0/10° adjustable)
Cabinet Color	Black is the default color
L65 Dimensions	156×1224×177mm
L65A Dimensions	156×365×177mm
Height for 1pc L65+L65A	1596mm
L65 Net Weight	18kg
L65A Net Weight	5kg
