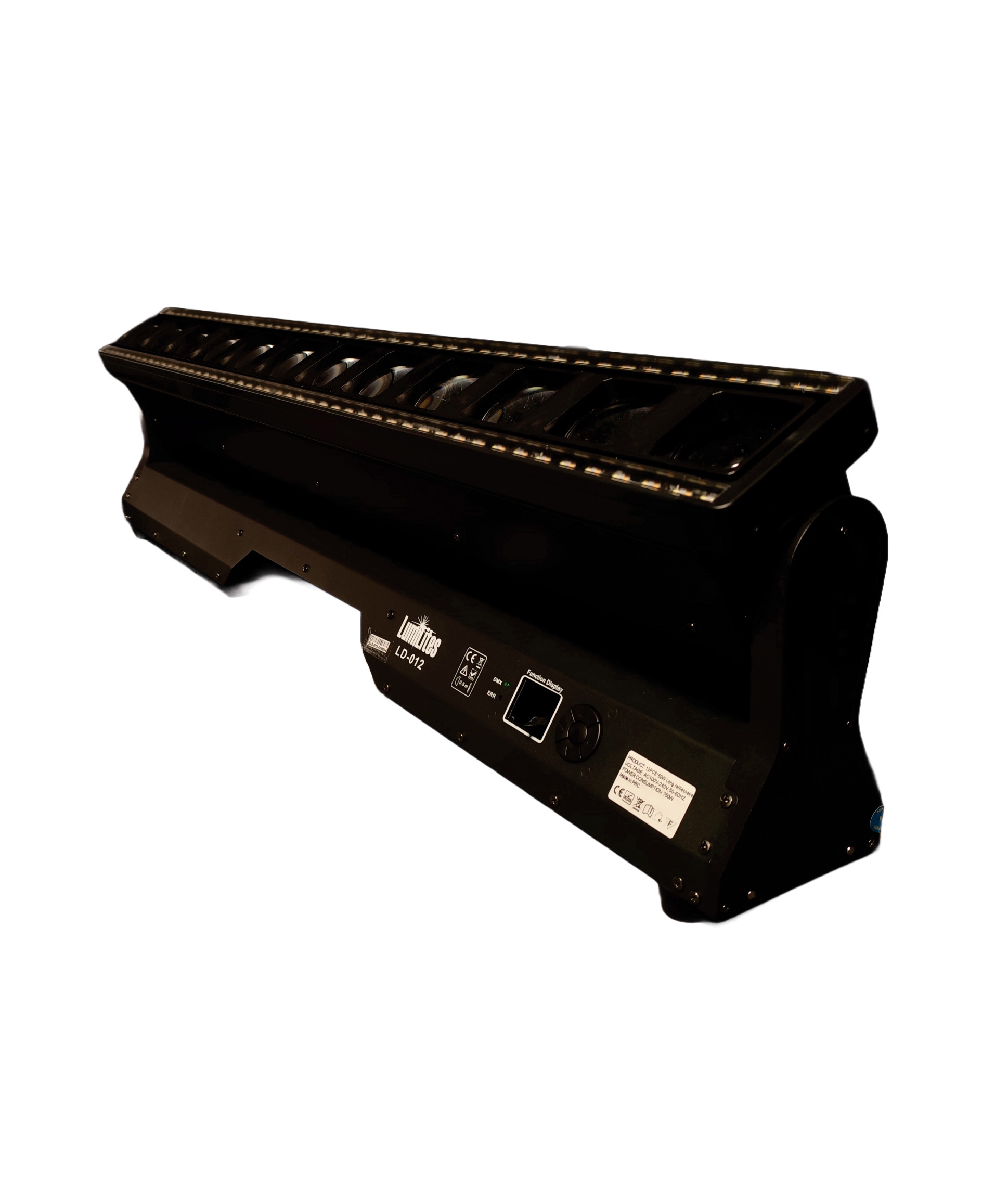

Lumilites DOTLINE

DESCRIPTION	SPECIFICATION
Light source	80W white light LED module color
temperature	7500-8000K
LED service life	20000 hours
Optical system	Efficient optical system
Drum scanning angle	Horizontal - 110 ° Vertical - 90 ° Beam angle - 3 °
Control and Program	4 touch buttons
Control panel	OLED display screen
Control protocol	DMX512, RDM, primary and secondary machines
Channel mode	8
Software upgrade	Updating software through a DMA connection Artificial Intelligence IoT Systems - AIOT Fengyun System, "Yi · Data" Automatic Management System (optional)
Roller X-axis/Y-axis	X-axis operating angle - 180 ° Y-axis operating angle - infinite rotation Electrical and Interface
Input power supply	180-240V 50/60Hz
Power	100W
Power socket	single entry power connector
Signal input/output	Three core XLR socket
Fixed pattern disc	7 patterns (with fixed colors)+1 flowing pattern+white circle
Maximum ambient working temperature	40°C
Minimum working working temperature	0°C
Maximum surface working temperature	65°C
Protection level	IP20
Packing size	106×65×47cm
